Base stage
Last modified by fwilde on 2018-11-28 17:05

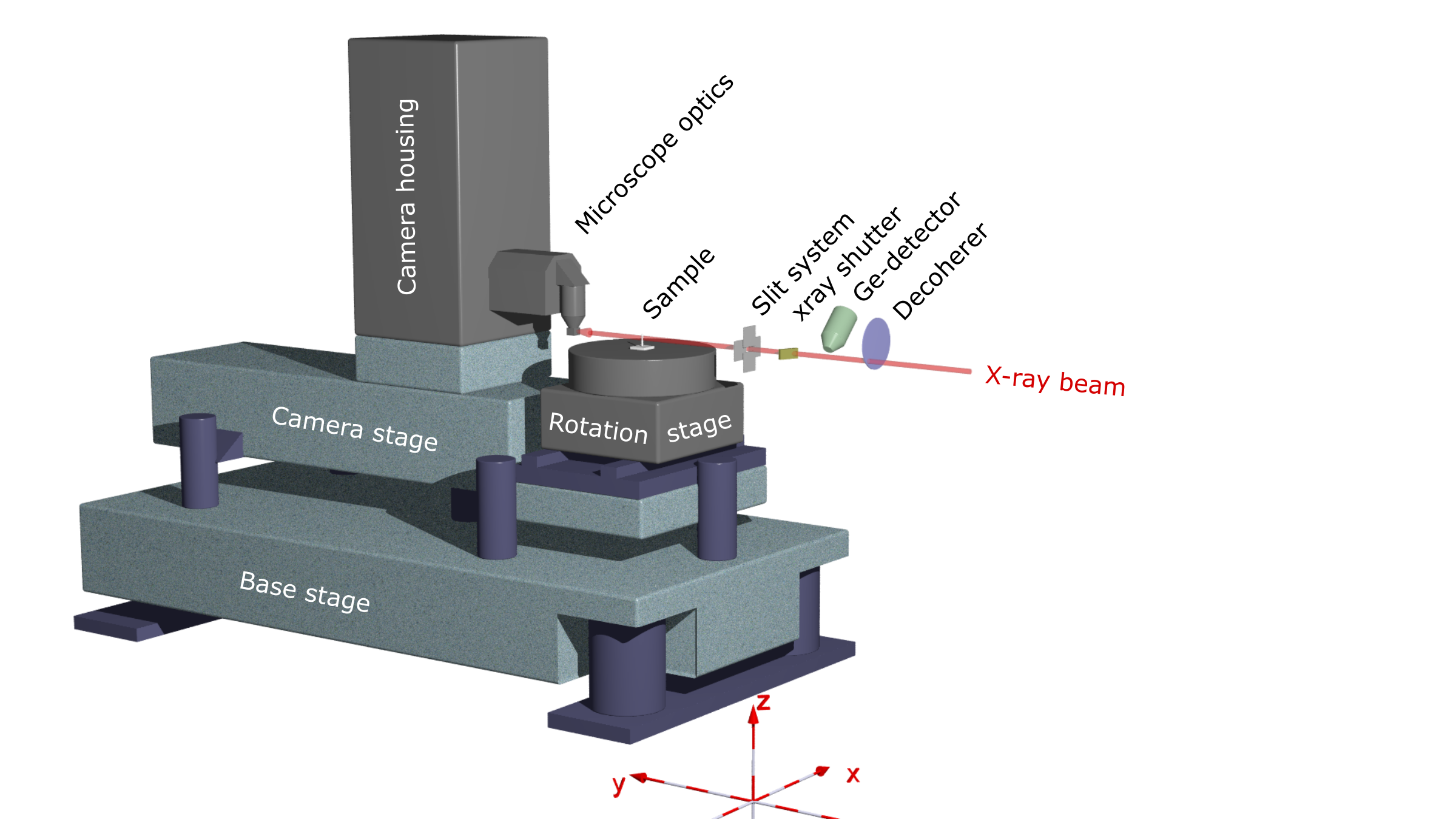

The base stage is a heavy granite table on which the whole setup rests.
The coordinate systrem is defined in the experiment sketch, rot_x, rot_y and rot_z refer to rotations around the x, y and z axes respectively.
direction | travel range |
|---|---|
x | +/- 10 |
y | - |
z | +/- 50 mm |
rot_x | 1.0° |
rot_y | 1.0° |
rot_z | - |
mm
