Micro Tomography setup overview
Last modified by fwilde on 2017-06-20 13:01

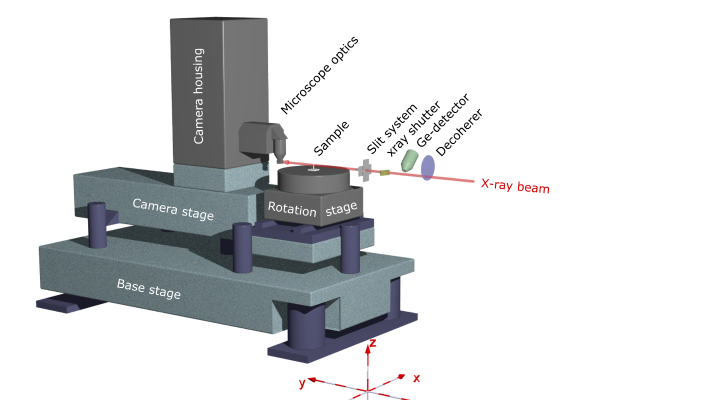

The micro tomography setup is located in the experimental hutch 2 of the beamline P05 and is schematically shown in the figure below
Mechanical setup:
- Base stage
- Rotation stage
- Camera stage
- Sample stage
Furtther equipment:
- Microscope optics
- Slit system
- X-ray shutter
- Ge-detector
- Decoherer
- Sample changer
Cameras:
- EHD CCD
- KIT CMOS
- PCO CMOS
