Sample environments

Last modified by fwilde on 2023/10/05 16:47
It's highly recommended to not edit this document. Any modification made will eventually be lost because it cannot reach back the owner replication instance of that document.

A load frame, a furnace a hanging axis and a corrosions cell is available for users at the P05 micro tomography end station. Please contact the beamline staff is you want to use one of the sample envirnments.

Load frame

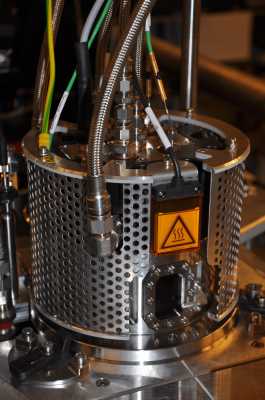

Furnace

  • Temperature up to 800°C
  • Two dependent heating zones
  • Sealed  gas chamber for gas infusion
  • Feed through rotation axis


Hanging axis

  • Sample immersion in fluids


Corrosion cell

  • Cell for corrosion experiments
  • "Headless" design for absorption contrast tomography


Mounting User provided environments

If you plan to bring your own sample environment it is strongly recommended to contact the beamline staff weeks before the start of the beamtime.

  • Maximum payload for sample environments is 60kg.
  • Maximum distance between beam and top of the ration table is 180mm


A technical drawing of the top side of the rotation stage is shown in the figure below. Sample environments or the like should be place on one of the inner two thread circles of the air bearing ABRT-260 stage.


Covers

For sample environments with liquids or any other materials that potentially spill, there are different 3 types of covers for the rotation stage. Each is explained in a section below which provides a technical drawing with drill patterns.

Cover for assembly on the sample stage (piezo stack alignment)

This cover is intended for very small and light sample environments (less than 100g). The cover consists of three pieces. The top pieze sits on the sample stage and allows for adjustment of the sample environment w.r.t. the rotation axis.

Spritzschutz-dreiteilig.pdf Spritzschutz-dreiteilig-Bohrbild.pdf

Cover for sample mount on inner (precise) rotation stage

This cover carries bulkier sample enviroments (less than 2 kg). It consists of two pieces, the inner piece sitting on the air bearing precise inner rotation stage. High precision rotation is thus maintained, but alignment w.r.t. to the rotation axis is not possible (but can be realized by the sample environment itself).

Spritzschutz-zweiteilig.pdf Spritzschutz-zweiteilig-Bohrbild.pdf

Cover for sample mount on outer (heavy duty) rotation stage

This cover consists of only on piece sitting on the outer, roller bearing rotation stage. High rotation precision is not maintained, but the cover carries heavier loads.

Spritzschutz-einteilig.pdf Spritzschutz-einteilig-Bohrbild.pdf

Overview of rotation stage covers

Spritzschutz-Vergleich.pdf

Static sample environments

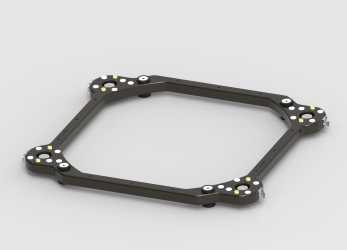

In case that the sample environment is static and should not be rotated, a sample environment frame can be used. The frame is mounted on the outer edges of the rotation stage and is equipped with fittings to mount the sample environment in the same position with respect to the rotation stage.

Rahmen solo.jpg Schlussrahmen_00156230_00159378.PDF
